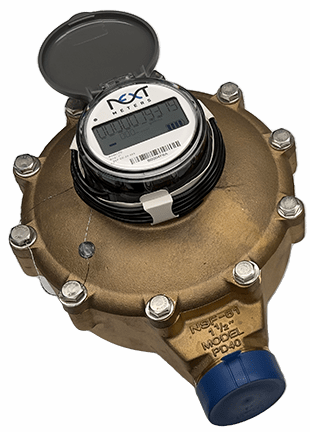

M&E PD40 1.5" LF Bronze Encoded NR bare wire register

For use in measurement of potable cold water in residential,
commercial and industrial services where flow is in one direction
only.

The register’s powerful and intuitive mobile application allows you to
both program as well as collect reads from it without the need of
additional costly equipment. This facilitates utilities to both reduce
expenses while increasing the efficiency of daily operations.

The measuring chamber is an oscillating piston positive displacement
design made of engineered plastics that meet NSF standards. The

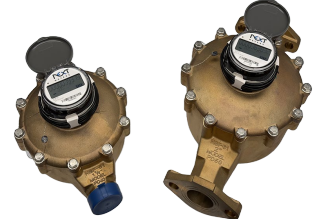

PD40 and PD50 are approved by NTEP for horizontal and vertical
installations in cold water.

Water Meter

• The PD water meter consists of three major assemblies: a register,
a lead-free bronze main case, and a positive displacement
(oscillating piston) measuring chamber.
• For reading convenience, the register is mounted hinged on
the outlet side of the meter. The lead-free bronze main case is
corrosion resistant and is rated for typical municipal applications.
• The positive displacement chamber design of the measuring
element ensures maximum accuracy in any installation orientation.
The measuring unit is optimized for minimal wear.
• All M&E meters meet or exceed AWWA C700 standards.
• M&E provides a limited warranty. See warranty statement for
details.

Register

• Incorporates Accuracy Data Leveling Technology
as presented in: https://doi.org/10.1002/opfl.1757
• Built-in BLE communication for configuration and reading.
• Anti-obsolescence: 10-year estimated battery life, under normal
operating conditions. Replaceable with CR18505 lithium battery.
• Operating Environment:
» IP68 for submersed applications.
» Temperature min -4o F
» Temperature max 120o F
• Exceeds IP68 requirements.
• Field replaceable, sealed battery.
• Complies with Part 15 of the FCC rules.
